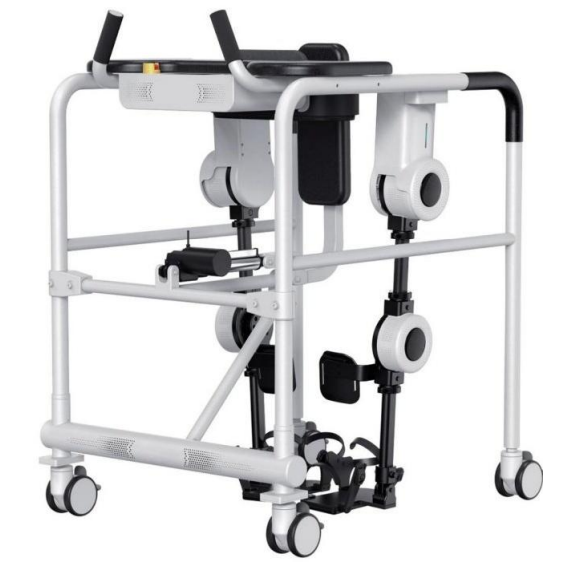

Lower Limb Exoskeleton Robot

Lower Limb Exoskeleton Robot

Original price was: ₹1,199,999.00.Current price is: ₹900,000.00.

The KS-YDKF05 Lower Limb Exoskeleton is an advanced robotic gait rehabilitation system designed to support structured walking training in neurological and mobility-impaired patients.

Engineered for clinical precision, it provides powered hip and knee assistance, safe sit-to-stand transition, and adjustable gait parameters including step height, walking speed, and resistance levels. This enables controlled, repeatable, and measurable rehabilitation sessions.

Ideal for stroke recovery, spinal rehabilitation (selected cases), and long-term gait impairment, the system enhances patient safety while reducing therapist fatigue.

With built-in safety features such as an emergency stop mechanism, structured training modes, and real-time walking feedback, the KS-YDKF05 supports progressive, confidence-building rehabilitation.

Marketed & Supported in India by WhiteShield Enterprises.



Terms & Conditions

  1. Payment Terms
    100% advance payment against Proforma Invoice prior to order confirmation and production scheduling.
  2. Order Confirmation
    Order will be processed only after receipt of full payment in our designated bank account.
  3. Delivery / Transit Time
    Estimated delivery timeline: 8–12 weeks from the date of confirmed payment.
    Transit time may vary depending on customs clearance and logistics conditions.
  4. Freight & Insurance
    Freight charges are additional unless specifically mentioned in the quotation.
    Transit insurance will be arranged upon request at additional cost.
  5. Installation & Training
    Installation and basic operational training will be provided (onsite/online as mutually agreed).
    Travel and accommodation expenses, if applicable, will be charged extra.
  6. Warranty
    • Main unit: 1 year warranty against manufacturing defects.
    • Battery & adapter: 6 months warranty.
      Warranty excludes consumables, misuse, unauthorized modification, and physical damage.
  7. After-Sales Service
    Post-warranty service and spare parts will be chargeable as per prevailing rates.
  8. Cancellation Policy
    Orders once confirmed and processed are non-cancellable and non-refundable.
  9. Force Majeure
    The company shall not be liable for delays caused by circumstances beyond control including but not limited to natural disasters, government restrictions, customs delays, or supply chain disruptions.
  10. Jurisdiction
    All disputes shall be subject to Mumbai jurisdiction only.



Categories: , , ,

Description

LOWER LIMB EXOSKELETON ROBOT

Model: KS-YDKF05

Instruction Manual

Marketed & Supported in India by WhiteShield Enterprises

1. IMPORTANT SAFETY INFORMATION

Please read this manual carefully before operating the device. Improper use may result in injury, equipment damage, electric shock, or fire.

1.1 Intended Users

This device is suitable for:

  • Adults aged 18–70 years

  • Height: 150–190 cm

  • Weight: ≤100 kg

  • Individuals able to stand ≥10 minutes with assistance

  • Stable cardiopulmonary condition

1.2 Contraindications

Do NOT use if the patient has:

  • Severe heart disease

  • Uncontrolled hypertension

  • Recent myocardial infarction

  • Severe heart failure

  • Active Deep Vein Thrombosis (DVT)

  • Recent major surgery (within 3 months)

  • Pregnancy

  • Severe lower limb fractures or deformities

  • High fall risk as assessed by physician

  • Cognitive impairment preventing safe operation

Minors under 16 must not operate independently.

1.3 General Safety Guidelines

  • Use only original charger and battery.

  • Do not use while charging.

  • Keep away from water, rain, and high humidity.

  • Operating temperature: 0°C – 40°C

  • Do not use on stairs, slopes, gravel, oily, or wet surfaces.

  • Always check straps, emergency stop button, and battery level before use.

  • Minimum battery required before training: 30%.

  • Stop immediately if patient experiences pain, dizziness, breathlessness.

  • If abnormal smell, heat, or vibration occurs — stop and contact service.

2. PRODUCT OVERVIEW

The KS-YDKF05 is a robotic lower limb exoskeleton designed for structured gait rehabilitation.

Main Components

  1. Armrests

  2. Electric actuators

  3. Lift handle

  4. Status indicator

  5. Hip module

  6. Knee module

  7. Calf support

  8. Power button

  9. Control panel

  10. Emergency stop button

  11. Waist belt

  12. Stool

  13. Calf straps

  14. Shoes

  15. Wheels with brakes

Note: Design may vary slightly from illustrations.

3. TRAINING MODES

3.1 Active Forward Training

  • Assisted walking mode

  • Adjustable speed

  • Adjustable assistance level

  • Encourages voluntary muscle activation

3.2 Backward Training Mode

  • Controlled backward stepping

  • Improves coordination & balance

3.3 Resistance Training Mode

  • Adjustable resistance

  • Strengthens hip & knee muscles

  • Weight-bearing training effect

4. PREPARATION BEFORE USE

Before starting:

  • Clear floor area of wires, debris, obstacles.

  • Patient should wear loose trousers and closed athletic shoes.

  • Do NOT use high heels, slippers, skirts, or shorts.

  • Familiarize yourself with the emergency stop button.

Emergency Stop:
Press to immediately stop operation.
Lift to reset.

5. WEARING INSTRUCTIONS

  1. Position wheelchair close to the device.

  2. Lock wheelchair brakes.

  3. Transfer patient’s legs into exoskeleton shoes.

  4. Secure shoe straps.

  5. Secure calf straps.

  6. Use lift handle to raise stool gradually.

  7. Secure waist belt.

  8. Continue lifting until patient reaches supported standing.

Ensure flat surface during operation.

6. OPERATION PROCEDURE

  1. Press Power Button (green indicator lights).

  2. System performs self-test.

  3. Select desired training mode.

  4. Adjust:

    • Step height

    • Walking speed

    • Assistance level

  5. Press START.

During session:

  • Monitor walking curve feedback.

  • Adjust steps per minute as needed.

  • Monitor patient condition continuously.

7. CHARGING INSTRUCTIONS

  • Turn OFF device before charging.

  • Connect adapter to charging port.

  • Blue light = charging.

  • Green light = fully charged.

  • Charging time: <5 hours.

  • Battery life: >6 hours.

Do NOT operate device while charging.

8. MAINTENANCE & CARE

8.1 Monthly User Maintenance

(Or after cumulative 20 km use)

  • Turn off device.

  • Inspect straps, connectors, cables.

  • Perform no-load functional test.

  • Clean exterior with mild detergent.

  • Disinfect weekly with 75% ethanol.

  • Do NOT use high-pressure water.

  • Do NOT open casing.

8.2 Battery Care

  • Use original charger only.

  • Maximum single charge time: 6 hours.

  • Store at 50–70% charge if unused for 1 month.

  • Replace battery if:

    • Runtime <2 hours

    • 300 charge cycles

  • Replacement must be done by authorized personnel.

9. TROUBLESHOOTING (Quick Guide)

Issue Possible Cause Solution
Device not starting Low battery Charge device
No sound Volume set to 0 Increase volume
Weak assistance Assistance too low Increase level
Screen too dark Low brightness Adjust in settings
Abnormal joint communication Cable issue Restart device / Service

If issue persists, contact authorized service center.

10. TECHNICAL SPECIFICATIONS

Model: WAL-D1 / WAL-D2
Height Range:

  • WAL-D1: 150–170 cm

  • WAL-D2: 170–190 cm

Weight Capacity: ≤100 kg
Device Weight: ~120 kg
Battery Capacity: 21Ah
Nominal Voltage: 21.6V DC
Charging Time: <5 hours
Battery Life: >6 hours
Operating Temperature: 0°C–40°C

11. WARRANTY

Main Unit:

  • Frame, motors, control boards, shoes, stool
    Warranty: 1 Year

Accessories:

  • Lithium battery & adapter
    Warranty: 6 Months

Consumables:

  • Straps, pads, buckles
    No warranty

12. PACKING LIST

  • Device Body ×1

  • Adapter ×1

  • Instruction Manual ×1

KS-YDKF05目录册(1) (1)
